LED T8 tube lights

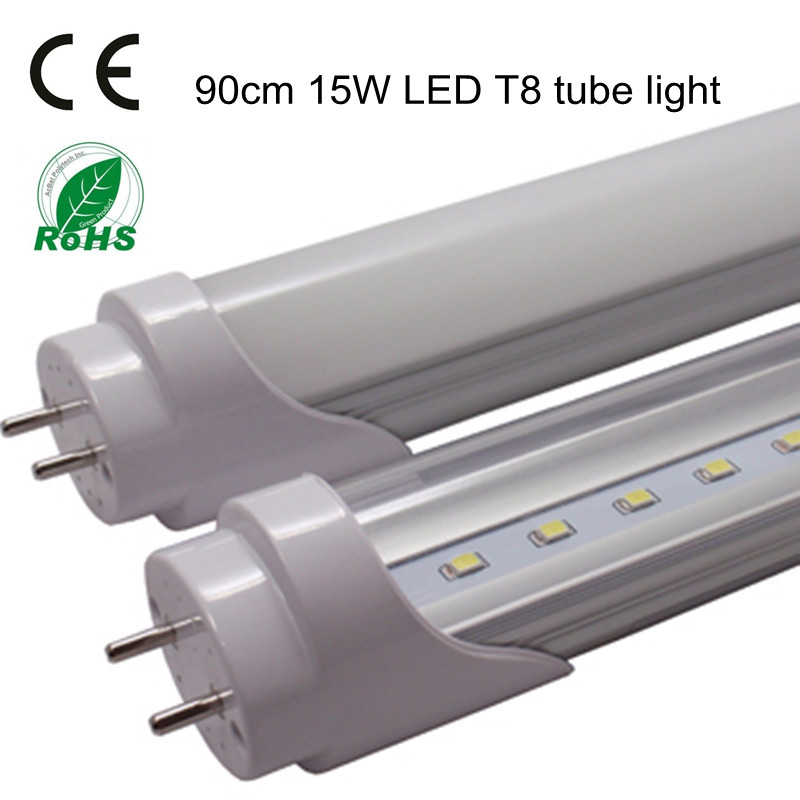

90cm 15W LED T8 tube light
FT-T8-90-15W
Specification:
LED Tube Light is a direct, drop-in replacement for standard T8 fluorescent light tubes, utilizing clean, safe and long lasting LED Technology. LED tubes will be 70% Energy Savings than fluorescent light. Long life, up to 50,000+ hours.

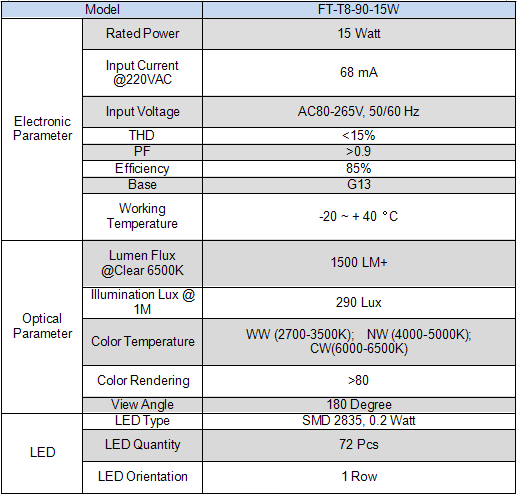

Technical Specification:
Mechanical Specification:

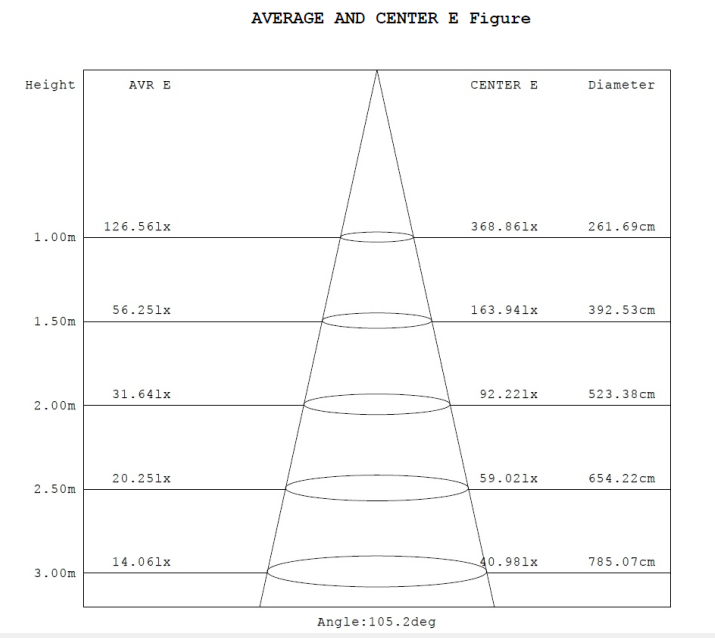

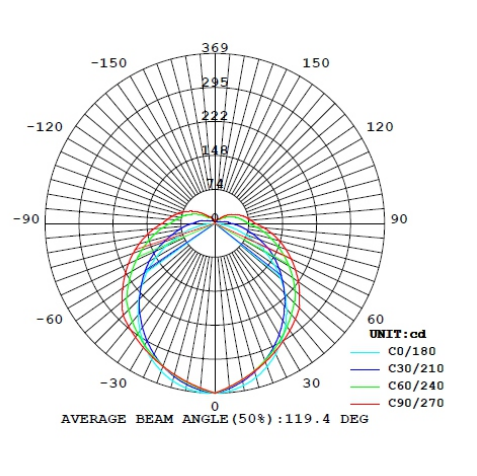

Photometric Parameters:
T8 LED Tube Component:
1. Power Supply
2. PC cover top case
3. Aluminum plate Light board
4. Aluminum groove bottom case
5. LED Bulb chip
T8 LED Tube Cover:
Transparent Cover Frosted Cover
Color temperature:
Packing details:
Installation Instruction:
Two Sides Power Supply
1.To replace fluorescent lamp, please connect the wires as the following diagram.
2.Magnetic/inductive ballasts do not need to remove. Only the starter (preheat lamp) needs to be removed from such fittings.
3.Electronic ballasts are not compatible with LED Tube Lights. DO NOT install the tube without removing / bypassing the electronic ballast as damage to the LED Tube may occur.
One Side Power Supply
1.To replace fluorescent lamp, please connect the wires as the following diagram.
2.Magnetic/inductive ballasts do not need to remove. Only the starter (preheat lamp) needs to be replaced by LED Starter.
3.Electronic ballasts are not compatible with LED Tube Lights. DO NOT install the tube without removing / bypassing the electronic ballast as damage to the LED Tube may occur.
Application:
LED Tube Light is widely applied to workshop, office, bank, hospital, shopping centre, subway, school, and other indoor places which require light of high luminosity and energy-saving.
LED Tube Light is a direct, drop-in replacement for standard T8 fluorescent light tubes, utilizing clean, safe and long lasting LED Technology. LED tubes will be 70% Energy Savings than fluorescent light. Long life, up to 50,000+ hours.
Technical Specification:
Mechanical Specification:
| Model | A(mm) | B(mm) | D(mm) | Weight |
| FT-T8-90-15W | 892 | 906 | 26 | 251g |
Photometric Parameters:
T8 LED Tube Component:
1. Power Supply
2. PC cover top case
3. Aluminum plate Light board
4. Aluminum groove bottom case
5. LED Bulb chip
T8 LED Tube Cover:
Transparent Cover Frosted Cover
Color temperature:
Packing details:
Installation Instruction:
Two Sides Power Supply
1.To replace fluorescent lamp, please connect the wires as the following diagram.
2.Magnetic/inductive ballasts do not need to remove. Only the starter (preheat lamp) needs to be removed from such fittings.
3.Electronic ballasts are not compatible with LED Tube Lights. DO NOT install the tube without removing / bypassing the electronic ballast as damage to the LED Tube may occur.
One Side Power Supply
1.To replace fluorescent lamp, please connect the wires as the following diagram.
2.Magnetic/inductive ballasts do not need to remove. Only the starter (preheat lamp) needs to be replaced by LED Starter.
3.Electronic ballasts are not compatible with LED Tube Lights. DO NOT install the tube without removing / bypassing the electronic ballast as damage to the LED Tube may occur.
Application:
LED Tube Light is widely applied to workshop, office, bank, hospital, shopping centre, subway, school, and other indoor places which require light of high luminosity and energy-saving.
